Myra DataHub SOC Manual (Cloud) Updated · 18 Aug 2026

Add Network

Note

To create and delete a network, as well as view and change settings, you need SOC administration rights.

Proceed as follows to add a new network to the list of networks for a company:

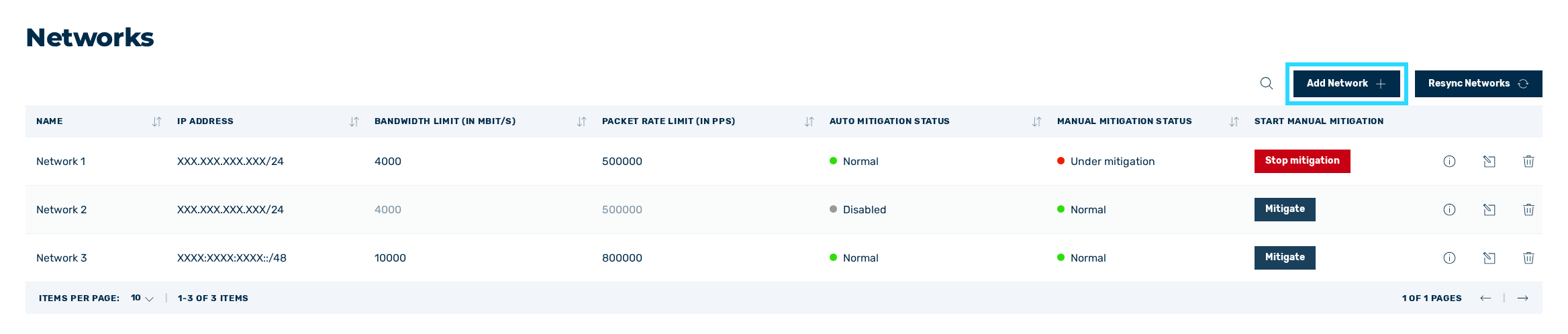

Button to add a network

Button to add a network

  • ► Click on the Add Network button.
  • ↳ The Add new network dialog opens.

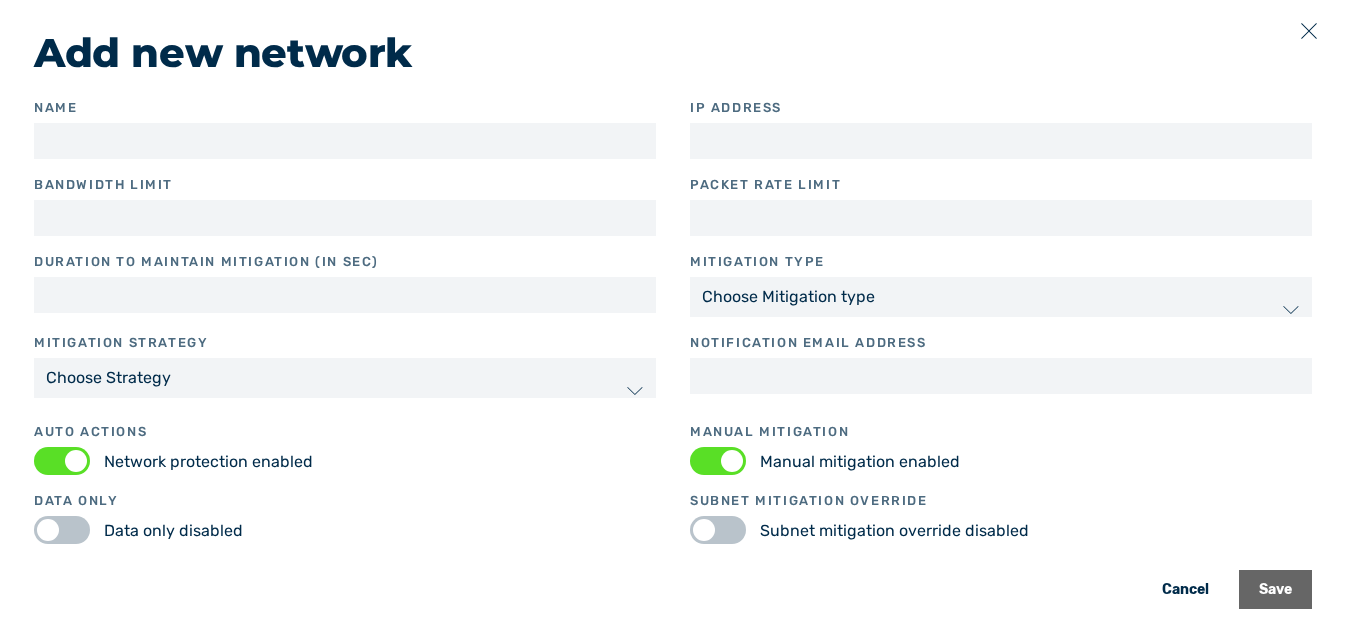

Add network dialog

Add network dialog

  • ► Enter the name of the network in the field under Name.
  • ► Enter the IP address of the network in the field under IP Address.

  • ► Enter the maximum possible bandwidth in the field under Bandwidth Limit (in MBit/s).

    Note

    If the switch for the network protection under Auto Actions is disabled, no thresholds can be set.

  • ► Enter the maximum number of permitted packets per second in the field under Packet Rate Limit (in PPS).

    Note

    If the switch for the network protection under Auto Actions is disabled, no thresholds can be set.

  • ► In the field under Duration to Maintain Mitigation (in Sec), enter the duration of the mitigation in seconds after the traffic has fallen below the thresholds.

  • ► Select the corresponding mitigation variant from the drop-down list under Mitigation type. The following values are available:
    • CLOUD: If the threshold is exceeded, the traffic is filtered via the Myra data center.
  • ► Select the corresponding value from the drop-down list under Mitigation Strategy. The following values are available:
    • IP: Only a single IP address of the network is automatically mitigated.
    • CIDR: The entire network is automatically mitigated.
  • ► If necessary, enter an email address in the field under Notification email address.

  • ► If necessary, disable the switch for the network protection under Auto Actions.

    Note

    If automatic network protection is disabled, mitigation will not start automatically and must be performed manually.

    The network is nevertheless visible in the list of networks in the Networks view.

  • ► If necessary, enable the switch for the manual mitigation under Manual Mitigation.

    Note

    If the manual mitigation is disabled, the Mitigate button cannot be clicked.

  • ► If necessary, enable the switch under Data only.

    Note

    In data-only mode, the traffic of the network is recorded only. The fields for the thresholds, the duration of the mitigation, the mitigation type, the mitigation strategy and the notification email address as well as the switches under Auto Actions and Manual Mitigation are hidden. No mitigation is performed for the network.

  • ► If necessary, enable the switch under Subnet mitigation override to use IPv4 /28 and IPv6 /32 networks.

  • ► Click on the Save button.
  • ➔ The new network is created and the traffic data appears in the Dashboard view.
